Met Research And Development: -

MET philosophy of continuous improvement of its technology and dedication to render value added products and services to its customers, after many years of continuing in house research, it has developed light weight space frames resulting in reduction in weight of the structure up to 30 percent in comparison to the bolt hole & Pin System counterpart as shown in above Figure Mero Spaceframe System.

MET space structure system offers greater economy by allowing freedom to the designer to use the full capacity of the major structural components like Pipes, Bolts and Sleeves by the elimination of the punched/drilled holes on these main components as shown in Figure Met Modified Hole Less Spaceframe System.

Our modified and high strength basic space frame elements coupled with the development and implementation of simplified and shortened manufacturing cycles enabled us the creation of low cost new generation lightweight Round Tube- Solid Sphere space frame system. This integrated space structure system is packaged with its full economy, improved corrosion resistance and enhanced durability has been serviced to all its customers as New Tech Space Frame System since year 2000.

Quality Testing (Load Test)

Met Quality Testing: -

Besides, full space frame assembly of MET, including all structural elements such as pipe, cone, bolt, sleeve, spherical steel ball (node), pipe/cone welding are subjected to tension and compression load tests to American Material Testing standard ASTM A370. The test loads are applied gradually to the structural component assembly in excess of 1.5 times of their corresponding design allowed stress and safety according to the design codes in Certified & Approved Independent Testing Laboratories to ensure the dependability and safety of the structure

Installation (optional) of Space Frames: -

These are carried out by a network of Qualified and Certified Builders working hand-in-hand with RSI to ensure satisfactory completion of works. Erection is generally categorized into three methods or combination thereof depending upon the actual site conditions namely: In-situ assembly from either full height mobile or fixed scaffolds.

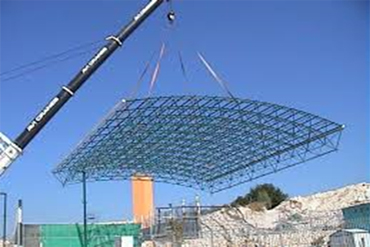

Full assembly on ground and lift into position using appropriate sized crane.

Partial assembly on ground, lift into position by crane and complete assembly by mobile scaffolds.

The completed space frame will undergo full and comprehensive final inspection before hand-over to clients.
